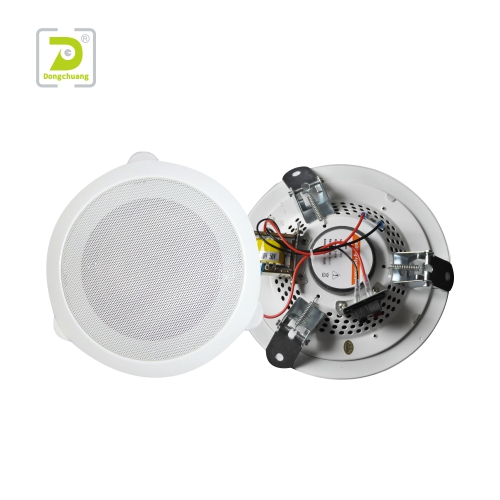

Y-602A is 5 inch speaker ,with coaxial tweeter,steel structure
Y-603A is 6.5 inch speaker ,with coaxial tweeter,steel structure
|
Model |
Y-601A |
Y-602A |
Y-603A |
|
Frequency response |
110-13000Hz |
110-13000Hz |
120-14000Hz |
|
Input voltage |
100V |
100V |
100V |
|
Sensitivity |
88db |
87db |
98db |
|
Speaker size |
4.5inch，1.5inch |
5inch，1.5inch |
6.5inch，1.5inch |
|
Net weight |
0.7KG |
0.74KG |
0.98KG |
|
Gross weight |
18KG |
18.8KG |
23.6KG |
|
Rated output power |
3-6W |
3-6W |
3-6W |
|

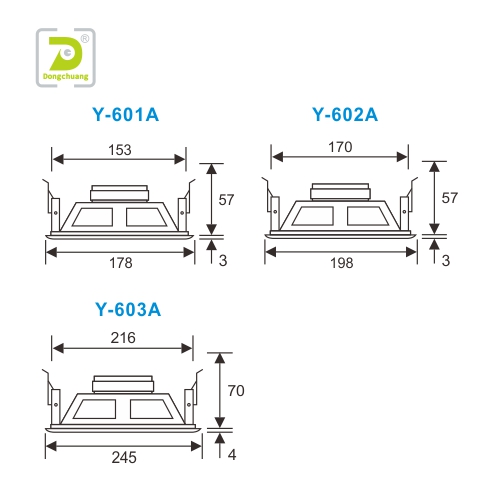

Install dimension |
Φ153mm |
Φ162mm |
Φ210mm |
|
Product dimension |
Φ178*57mm |
Φ198*57mm |
Φ245*70mm |
|
Packing dimension |
380*345*385(20PCS) |
415*345*425(20PCS) |
515*370*530(20PCS |
